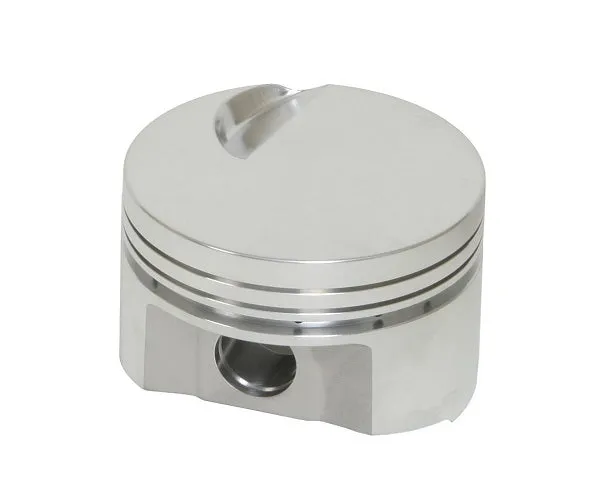

Big Block Chevy - Open Chamber Flat Top Forged Piston 139506 SRP139506 489 c.i., 4.280" bore, 4.250" stroke, 6.135" rod length, -3.0cc dome volume BBC 4.280" PISTONS -3cc FLAT This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.

Includes:

Spiro Lock: 990-042-CS

Straight Wall Pin: 990-2930-150(150g)

Specifications:

Part #: SRP139506

CID: 489

Bore: 4.280

Stroke: 4.250

Rod Length: 6.135

Compression Height: 1.520

Compression Ratio with 112cc chamber volume: 9.0

Compression Ratio with 118cc chamber volume: 8.6

Compression Ratio with 124cc chamber volume: 8.3

Dome Volume: -3cc

Gram Weight: 568

Oversize: 0.030

Recommended Ring Set (Check Proseal listing to determine oil ring tension): J100F8-4280-5

SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
