| Product Attribute | Attribute Value |
|---|---|
| Current Rating | 570 A |
| IP Rating | IP20 |
| Mounting Type | DIN Rail |
| Number of Inputs | 2 |
| Number of Outputs | 12 |
| Number of Poles | 1 |
| Primary Type | Power Distribution Block |
| Series | |
| UPC Code | 051712659901 |
| Voltage Rating | 600 VAC ; 600 VDC |
Overview

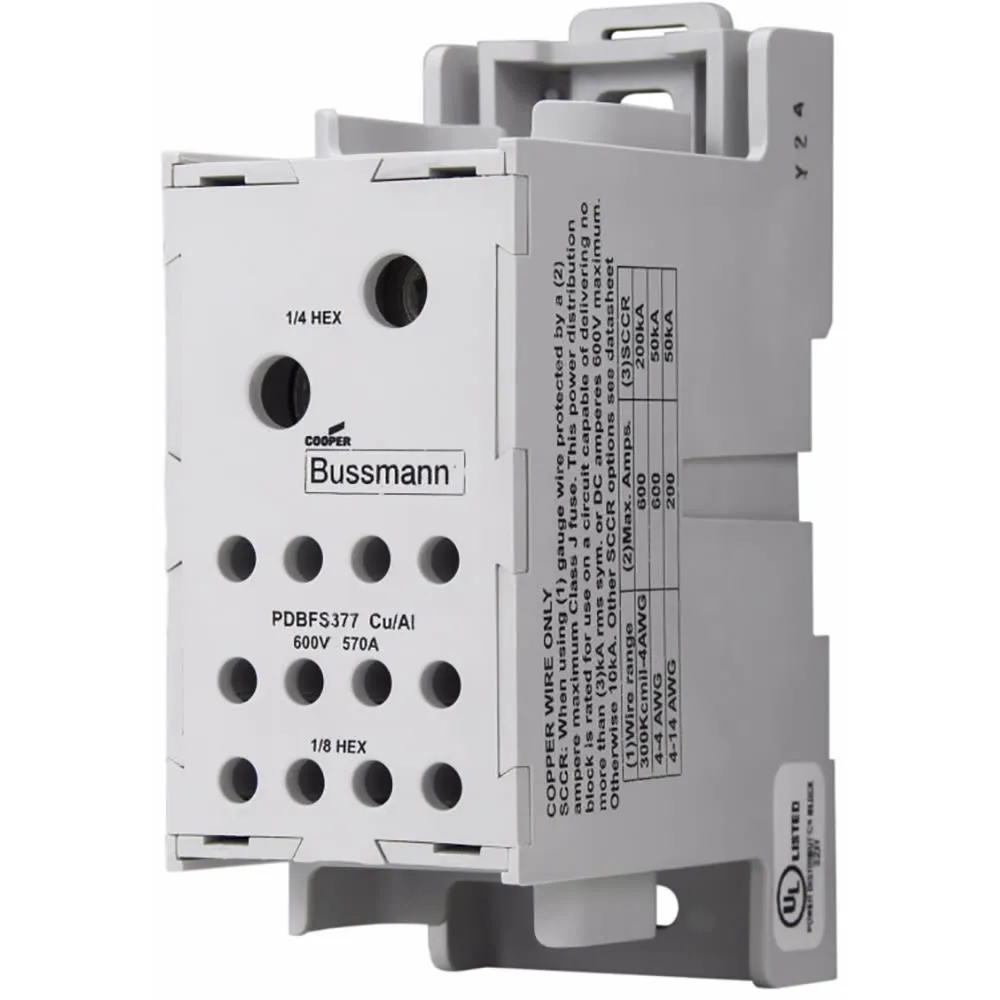

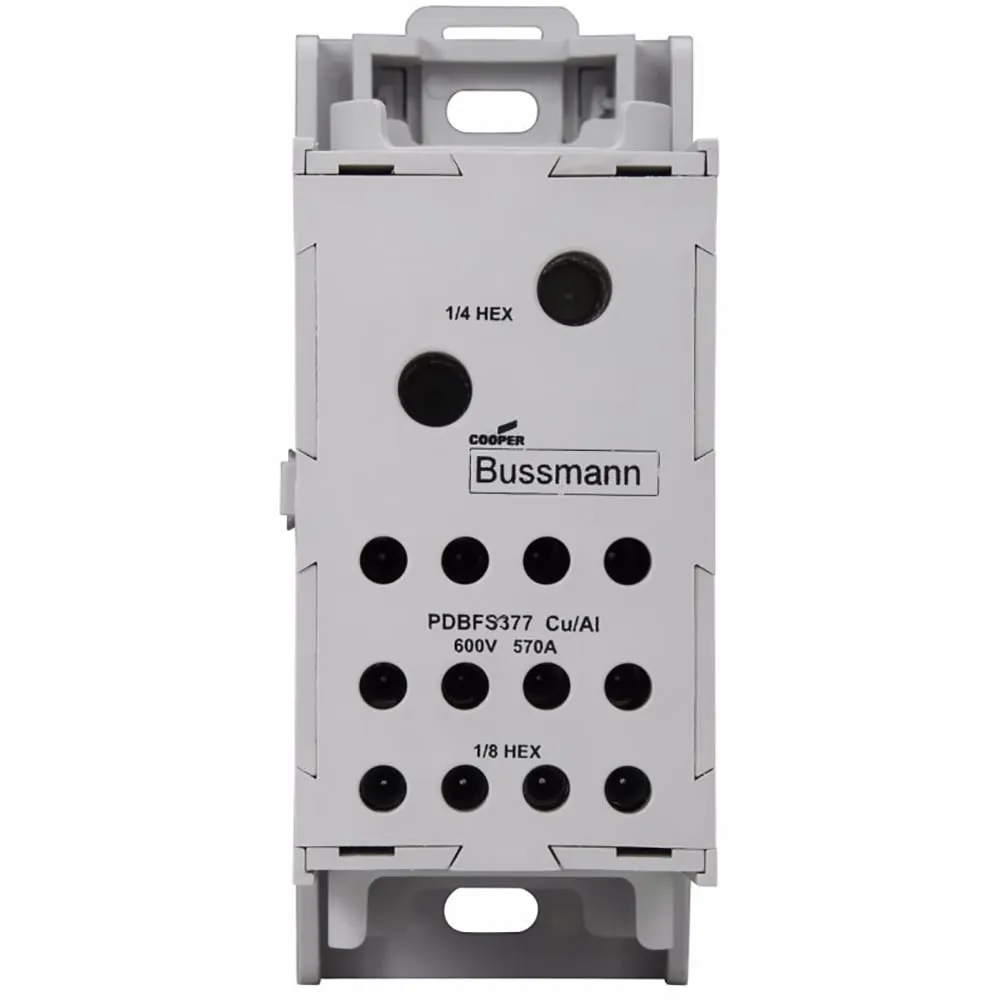

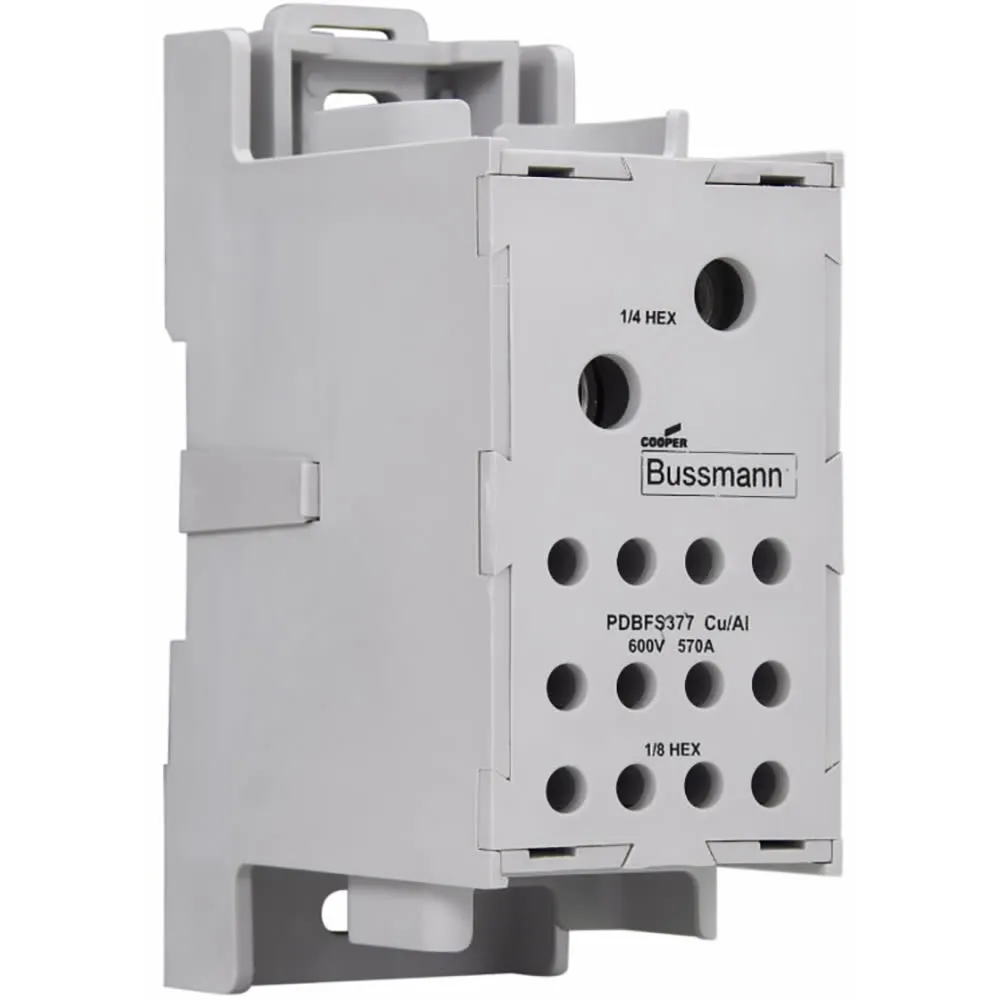

Power Distribution Block, IP-20 finger-safe, 570A, 600 Vac, 600 Vdc, DIN rail, panel mount, 200 kAIC (8 to 4 AWG), 100 kAIC (12 to 4 AWG) short circuit rating, Tin-plated aluminum connector material.
