Additional Features:
- Output: 0-16V @ 0-600A or 0-18V @ 0-500A
- Power: 9600W
- Form Factor: Benchtop
- Range programming modes: Fixed
- Voltage Ripple and Noise: 0.18 V
- Load Regulation, Voltage: 5 mV
- Load Regulation, Current: 1 A
- Transient Response Time: 100 ms
- Programming Resolution (% of full scale): 0.05 %
- Multiple Unit Combinations: Auto-Parallel, Series
- Overvoltage Protection, Overcurrent Protection, Over-temperature Protection
- Local Lockout

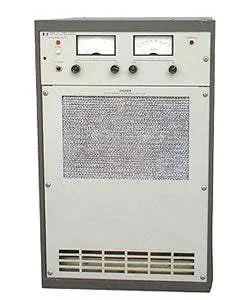

The Agilent HP 6466C is an SCR-regulated supply designed for medium to high-power applications requiring a fixed or variable DC source with moderate regulation and ripple. Large easy-to-read panel meters continuously monitor output voltage and current. Input and output power, remote sensing, remote programming, and auto-series, -parallel, and -tracking connections are made to bus bars and terminal blocks on the rear panel.
