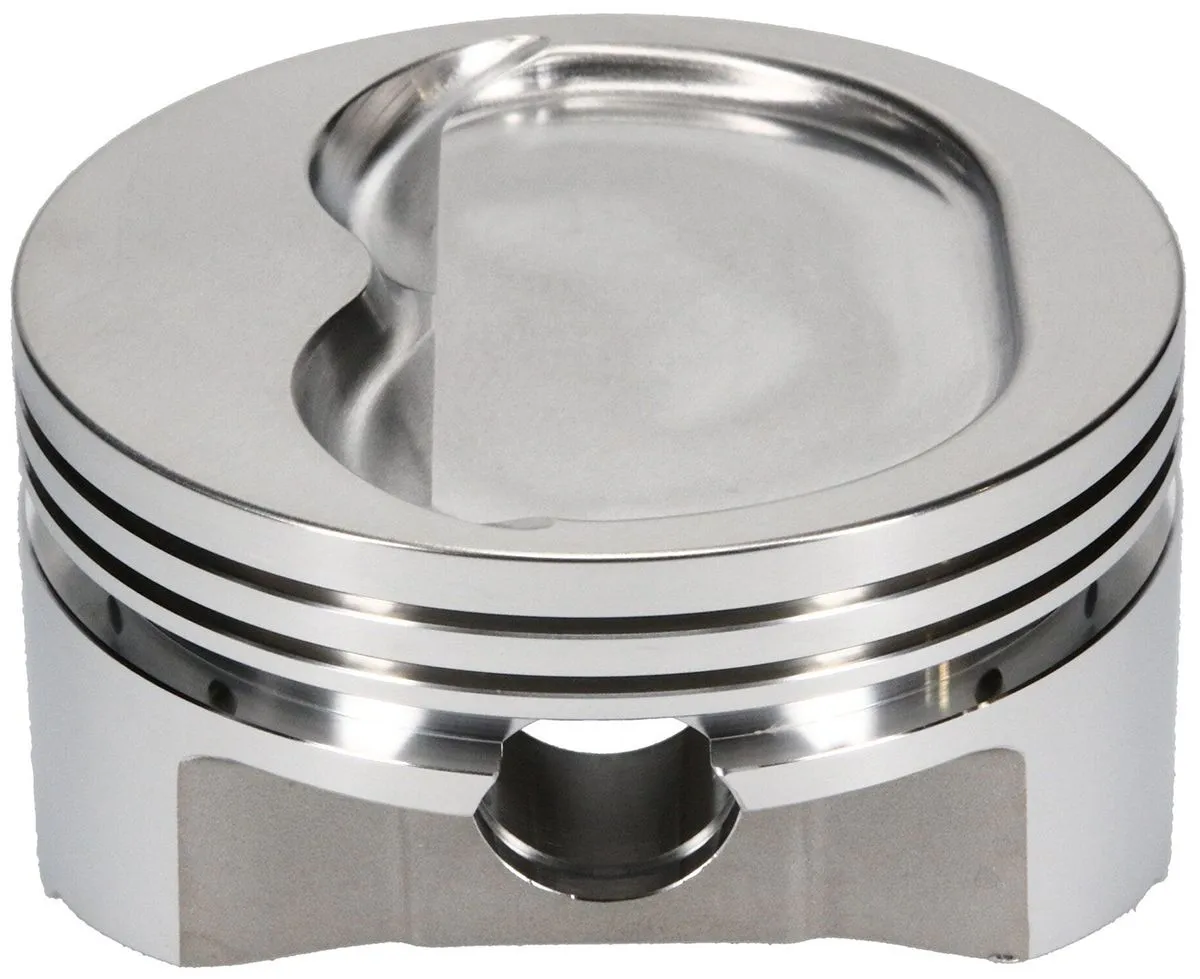

383 c.i., 4.030" bore, 3.750" stroke, 6.000" rod length, -16.0cc dome volume

SRP138103

P138103

This piston set is forged from high silicon 4032 aluminium alloy and specially designed for mild turbo, supercharged and nitrous applications. Features Forged Side Relief (FSR) and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings. Includes: Spiro Lock: 927-042-CS Straight Wall Pin: 927-2750-15-51S(130g) Pin fitting Specifications : Part #: SRP138103 CID: 383 Bore: 4.030 Stroke: 3.750 Rod Length: 6.000 Compression Height: 1.125 Compression Ratio with 58cc chamber volume: 10.4 Compression Ratio with 64cc chamber volume: 9.8 Compression Ratio with 70cc chamber volume: 9.2 Dome Volume: -16.0cc Gram Weight: 403 Footnote: Oil Rail Support is Included Oversize: 30 Recommended Ring Set (Check Proseal listing to determine oil ring tension): S100S8-4030-5 SRP and more. Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda
