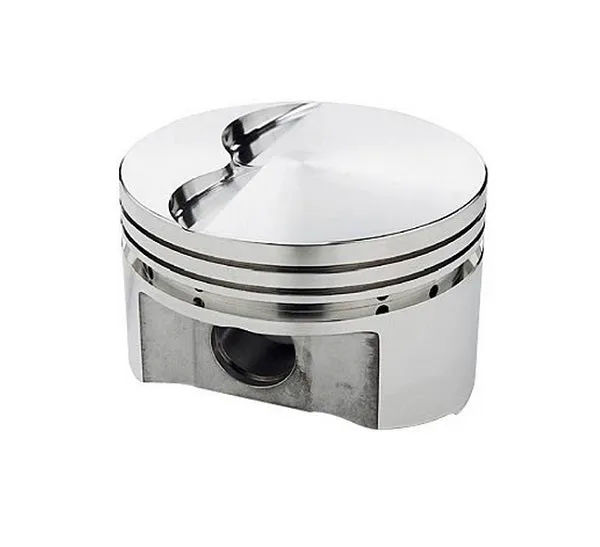

350 Small Block Chevy - Flat Top Forged Piston 138087 SRP138087 360 c.i., 4.060" bore, 3.480" stroke, 6.000" rod length, -5.0cc dome volume SBC 4.060" PISTONS -5cc FLAT This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.

Includes

:

Spiro Lock: 927-042-CS

Straight Wall Pin: 927-2750-15-51S(130g)

Pin fitting

Specifications

:

Part #: SRP138087

CID: 360

Bore: 4.060

Stroke: 3.480

Rod Length: 6.000

Compression Height: 1.260

Compression Ratio with 58cc chamber volume: 11.2

Compression Ratio with 64cc chamber volume: 10.4

Compression Ratio with 70cc chamber volume: 9.7

Dome Volume: -5.0cc

Gram Weight: 459

Footnote: fits 3.480 and 3.500 stroke

Oversize: 0.060

Recommended Ring Set (Check Proseal listing to determine oil ring tension): S100S8-4060-5

SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
